我司是ALPS授權代理商，ALPS系列產品均有在售，需要了解價格、包裝數，交期以及產品資料請咨詢在線客服！

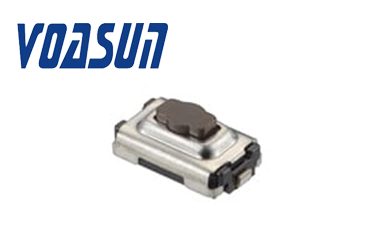

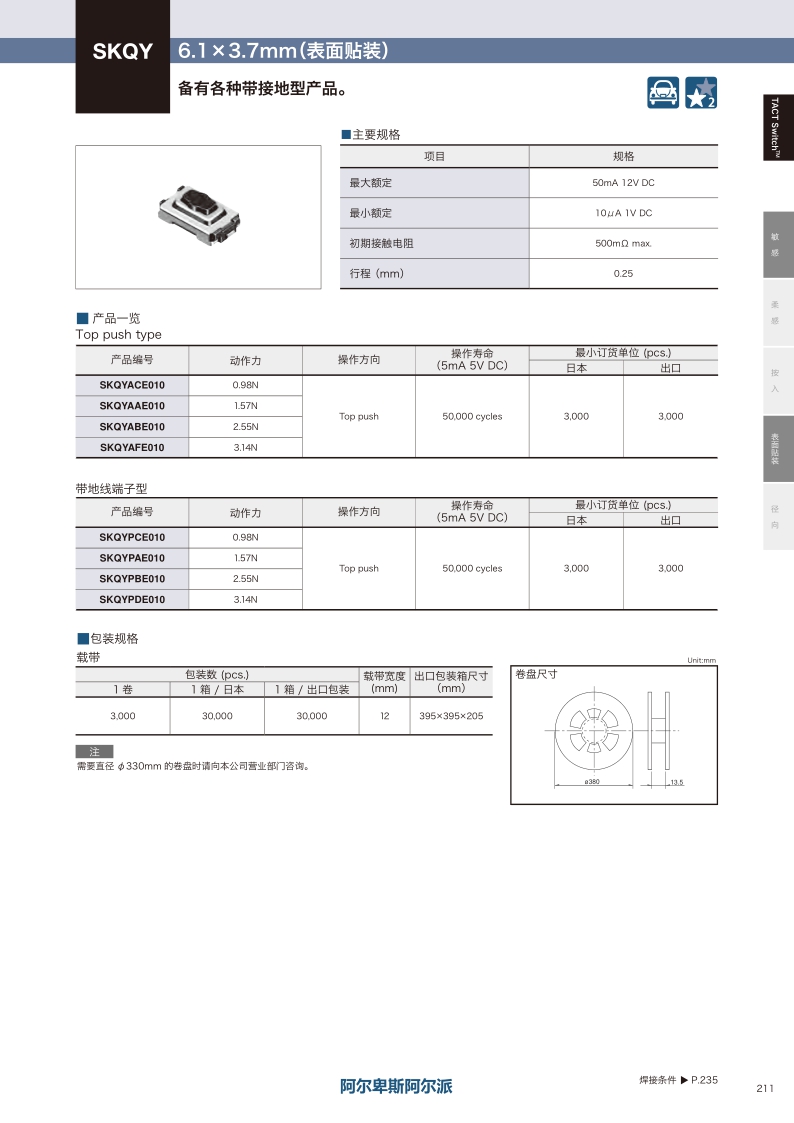

Top push type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
產品高度 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
尺寸(W×D×H) |
|
SKQYACE010 |
 |
Surface mount |
0.98N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
|
SKQYAAE010 |
 |
Surface mount |
1.57N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
|
SKQYABE010 |
 |
Surface mount |
2.55N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
|
SKQYAFE010 |
 |
Surface mount |
3.14N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
帶地線端子型
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
產品高度 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
尺寸(W×D×H) |
|
SKQYPCE010 |
 |
Surface mount |
0.98N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
|
SKQYPAE010 |
 |
Surface mount |
1.57N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
|
SKQYPBE010 |
 |
Surface mount |
2.55N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
|
SKQYPDE010 |
 |
Surface mount |
3.14N |
Top push |
0.25mm |
2.5mm |
50,000 cycles |
500mΩ max. |
6.1×3.7×2.5 |
SKQY系列用途：
Energy / Industrial:工業設備
Home:辦公設備
Automotive:轉向, 頂置控制臺, 汽車導航儀 汽車音響 HVAC
