我司是ALPS授權代理商，ALPS系列產品均有在售，需要了解價格、包裝數(shù)，交期以及產品資料請咨詢在線客服！

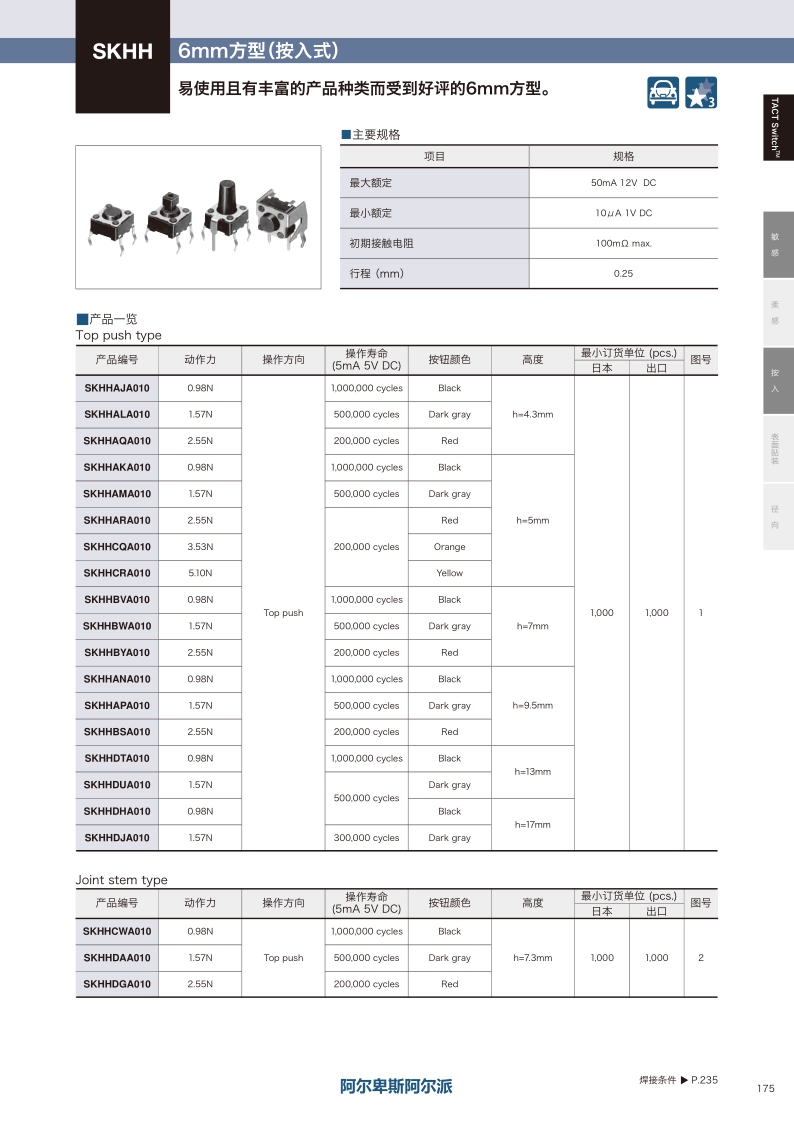

Top push type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
按鈕顏色 |
高度 |
尺寸(W×D×H) |
|

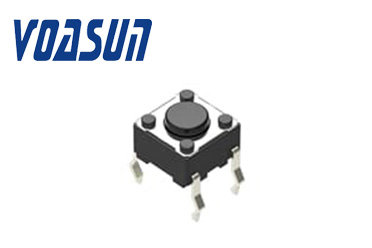

SKHHAJA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
4.3mm |
6.0×6.0×4.3mm |
|

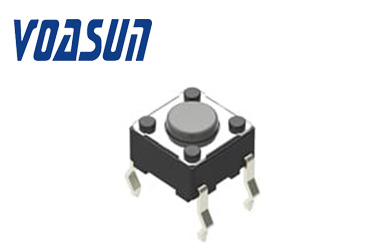

SKHHALA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
4.3mm |
6.0×6.0×4.3mm |
|

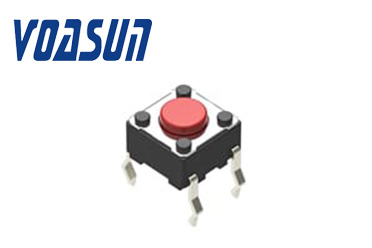

SKHHAQA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
4.3mm |
6.0×6.0×4.3mm |
|
SKHHAKA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHAMA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHARA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHCQA010 |
 |
按入 |
3.53N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Orange |
5.0mm |
6.0×6.0×5.0mm |
|

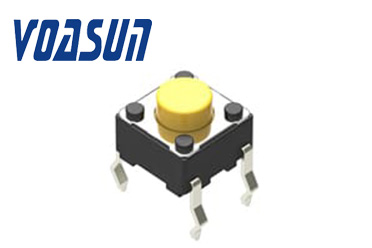

SKHHCRA010 |
 |
按入 |
5.1N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Yellow |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHBVA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
7.0mm |
6.0×6.0×7.0mm |
|

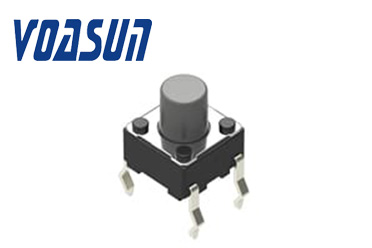

SKHHBWA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
7.0mm |
6.0×6.0×7.0mm |
|
SKHHBYA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
7.0mm |
6.0×6.0×7.0mm |
|
SKHHANA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
9.5mm |
6.0×6.0×9.5mm |
|
SKHHAPA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
9.5mm |
6.0×6.0×9.5mm |
|
SKHHBSA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
9.5mm |
6.0×6.0×9.5mm |
|

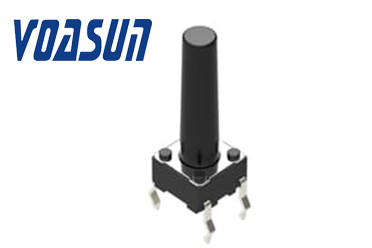

SKHHDTA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
13.0mm |
6.0×6.0×13.0mm |
|

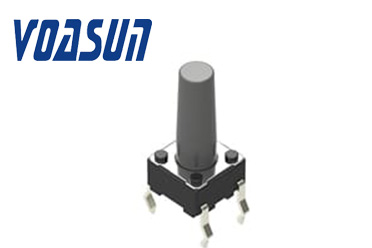

SKHHDUA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
13.0mm |
6.0×6.0×13.0mm |
|
SKHHDHA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Black |
17.0mm |
6.0×6.0×17.0mm |
|
SKHHDJA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
300,000 cycles |
100mΩ max. |
Dark gray |
17.0mm |
6.0×6.0×17.0mm |
Joint stem type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
按鈕顏色 |
高度 |
尺寸(W×D×H) |
|
SKHHCWA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
7.3mm |
6.0×6.0×7.3mm |
|
SKHHDAA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
7.3mm |
6.0×6.0×7.3mm |
|
SKHHDGA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
7.3mm |
6.0×6.0×7.3mm |

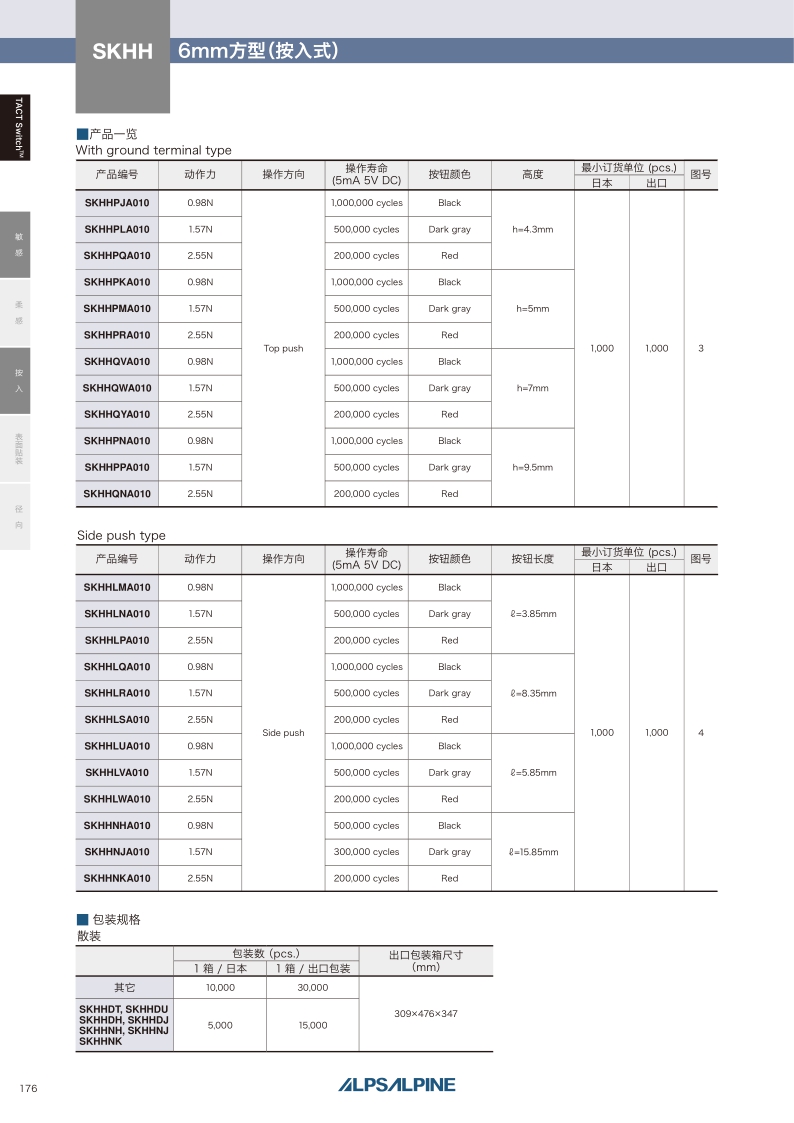

With ground terminal type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
按鈕顏色 |
高度 |
尺寸(W×D×H) |
|
SKHHPJA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
4.3mm |
6.0×6.0×4.3mm |
|
SKHHPLA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
4.3mm |
6.0×6.0×4.3mm |
|
SKHHPQA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
4.3mm |
6.0×6.0×4.3mm |
|
SKHHPKA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHPMA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHPRA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
5.0mm |
6.0×6.0×5.0mm |
|
SKHHQVA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
7.0mm |
6.0×6.0×7.0mm |
|
SKHHQWA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
7.0mm |
6.0×6.0×7.0mm |
|
SKHHQYA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
7.0mm |
6.0×6.0×7.0mm |
|
SKHHPNA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
9.5mm |
6.0×6.0×9.5mm |
|
SKHHPPA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
9.5mm |
6.0×6.0×9.5mm |
|
SKHHQNA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
9.5mm |
6.0×6.0×9.5mm |
Side push type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
按鈕顏色 |
按鈕長度 |
尺寸(W×D×H) |
|
SKHHLMA010 |
 |
按入 |
0.98N |
Side push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
l=3.85mm |
6.2×7.85×7.1mm |
|
SKHHLNA010 |
 |
按入 |
1.57N |
Side push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
l=3.85mm |
6.2×7.85×7.1mm |
|
SKHHLPA010 |
 |
按入 |
2.55N |
Side push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
l=3.85mm |
6.2×7.85×7.1mm |
|
SKHHLQA010 |
 |
按入 |
0.98N |
Side push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
l=8.35mm |
6.2×12.35×7.1mm |
|
SKHHLRA010 |
 |
按入 |
1.57N |
Side push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
l=8.35mm |
6.2×12.35×7.1mm |
|
SKHHLSA010 |
 |
按入 |
2.55N |
Side push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
l=8.35mm |
6.2×12.35×7.1mm |
|
SKHHLUA010 |
 |
按入 |
0.98N |
Side push |
0.25mm |
1,000,000 cycles |
100mΩ max. |
Black |
l=5.85mm |
6.2×9.85×7.1mm |
|
SKHHLVA010 |
 |
按入 |
1.57N |
Side push |
0.25mm |
500,000 cycles |
100mΩ max. |
Dark gray |
l=5.85mm |
6.2×9.85×7.1mm |
|
SKHHLWA010 |
 |
按入 |
2.55N |
Side push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
l=5.85mm |
6.2×9.85×7.1mm |
|
SKHHNHA010 |
 |
按入 |
0.98N |
Side push |
0.25mm |
500,000 cycles |
100mΩ max. |
Black |
l=15.85mm |
6.2×19.85×7.1mm |
|
SKHHNJA010 |
 |
按入 |
1.57N |
Side push |
0.25mm |
300,000 cycles |
100mΩ max. |
Dark gray |
l=15.85mm |
6.2×19.85×7.1mm |
|
SKHHNKA010 |
 |
按入 |
2.55N |
Side push |
0.25mm |
200,000 cycles |
100mΩ max. |
Red |
l=15.85mm |
6.2×19.85×7.1mm |
SKHH系列用途：
Energy / Industrial:工業(yè)設備
Healthcare:健康器具, 分析 檢查器具
Home:辦公設備
Audio / TV:畫面, 音響, 專業(yè)音響
Automotive:汽車導航儀 汽車音響 HVAC
