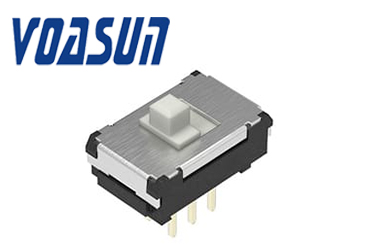

SSSS9系列——ALPS滑動開關

使用方便的中型通用型滑動開關，操作方向：Vertical Horizontal ? 安裝高度：5.0mm ? 行程：2.0mm ? 最大額定值：0.1A 12V DC ? 電路數：1/2-poles。

在線咨詢 規格書下載

產品詳情

我司是ALPS授權代理商，ALPS系列產品均有在售，需要了解價格、包裝數，交期以及產品資料請咨詢?cè)诰€客服！

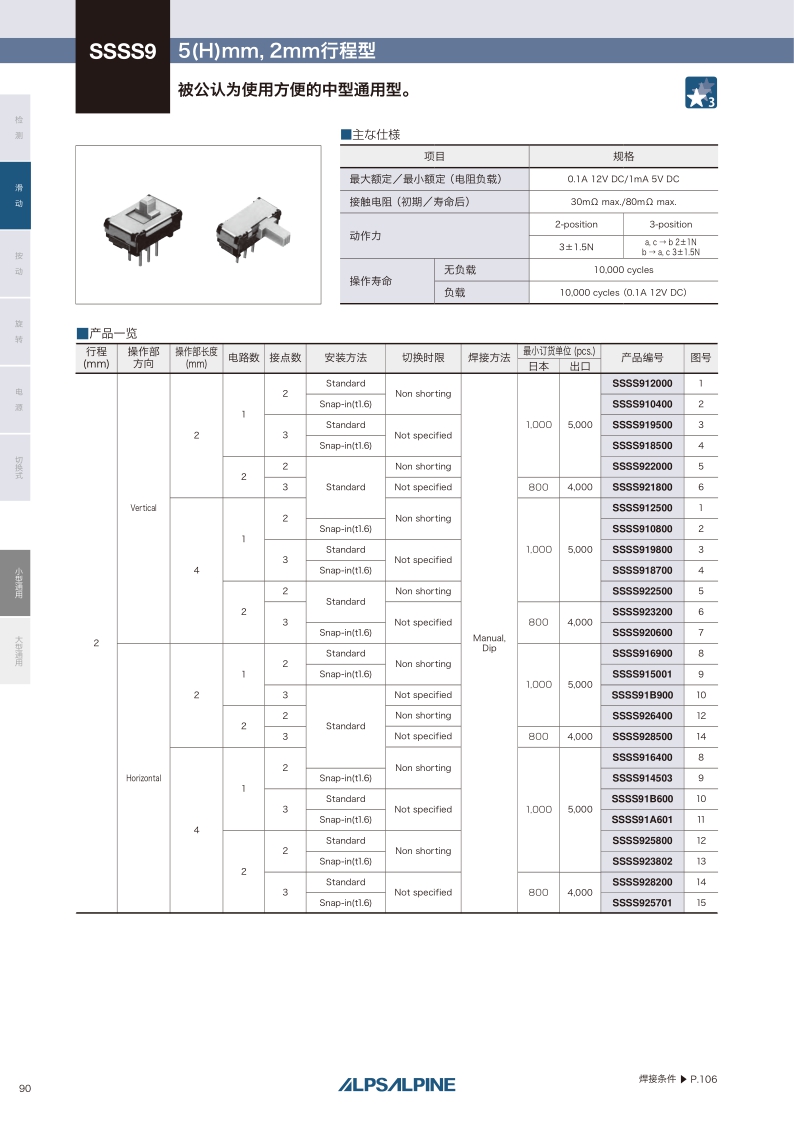

產品編號	行程	操作部方向	操作部長度	電路數	接點數	動作力	安裝方法	切換時限	焊接方法	尺寸(W×D×H)
SSSS912000	2.0mm	Vertical	2.0mm	1	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×4.7×5.5mm
SSSS910400	2.0mm	Vertical	2.0mm	1	2	3±1.5N	Snap-in (t1.6)	Non shorting	Manual, Dip	11.5×4.7×5.5mm
SSSS919500	2.0mm	Vertical	2.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×4.7×5.5mm
SSSS918500	2.0mm	Vertical	2.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Snap-in (t1.6)	Not specified	Manual, Dip	14.0×4.7×5.5mm
SSSS922000	2.0mm	Vertical	2.0mm	2	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×7.2×5.5mm
SSSS921800	2.0mm	Vertical	2.0mm	2	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×7.2×5.5mm
SSSS912500	2.0mm	Vertical	4.0mm	1	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×4.7×5.5mm
SSSS910800	2.0mm	Vertical	4.0mm	1	2	3±1.5N	Snap-in (t1.6)	Non shorting	Manual, Dip	11.5×4.7×5.5mm
SSSS919800	2.0mm	Vertical	4.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×4.7×5.5mm
SSSS918700	2.0mm	Vertical	4.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Snap-in (t1.6)	Not specified	Manual, Dip	14.0×4.7×5.5mm
SSSS922500	2.0mm	Vertical	4.0mm	2	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×7.2×5.5mm
SSSS923200	2.0mm	Vertical	4.0mm	2	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×7.2×5.5mm
SSSS920600	2.0mm	Vertical	4.0mm	2	3	a, c → b 2±1N b → a, c 3±1.5N	Snap-in (t1.6)	Not specified	Manual, Dip	14.0×7.2×5.5mm
SSSS916900	2.0mm	Horizontal	2.0mm	1	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×4.7×5.0mm
SSSS915001	2.0mm	Horizontal	2.0mm	1	2	3±1.5N	Snap-in (t1.6)	Non shorting	Manual, Dip	11.5×4.7×5.0mm
SSSS91B900	2.0mm	Horizontal	2.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×4.7×5.0mm
SSSS926400	2.0mm	Horizontal	2.0mm	2	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×7.2×5.0mm
SSSS928500	2.0mm	Horizontal	2.0mm	2	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×7.2×5.0mm
SSSS916400	2.0mm	Horizontal	4.0mm	1	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×4.7×5.0mm
SSSS914503	2.0mm	Horizontal	4.0mm	1	2	3±1.5N	Snap-in (t1.6)	Non shorting	Manual, Dip	11.5×4.7×5.0mm
SSSS91B600	2.0mm	Horizontal	4.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×4.7×5.0mm
SSSS91A601	2.0mm	Horizontal	4.0mm	1	3	a, c → b 2±1N b → a, c 3±1.5N	Snap-in (t1.6)	Not specified	Manual, Dip	14.0×4.7×5.0mm
SSSS925800	2.0mm	Horizontal	4.0mm	2	2	3±1.5N	Standard	Non shorting	Manual, Dip	11.5×7.2×5.0mm
SSSS923802	2.0mm	Horizontal	4.0mm	2	2	3±1.5N	Snap-in (t1.6)	Non shorting	Manual, Dip	11.5×7.2×5.0mm
SSSS928200	2.0mm	Horizontal	4.0mm	2	3	a, c → b 2±1N b → a, c 3±1.5N	Standard	Not specified	Manual, Dip	14.0×7.2×5.0mm
SSSS925701	2.0mm	Horizontal	4.0mm	2	3	a, c → b 2±1N b → a, c 3±1.5N	Snap-in (t1.6)	Not specified	Manual, Dip	14.0×7.2×5.0mm
