我司是ALPS授權代理商，ALPS系列產品均有在售，需要了解價格、包裝數，交期以及產品資料請咨詢在線客服！
|
產品編號 |
照片 |
行程 |
操作部方向 |
總電阻值 |
線性保證范圍 |
線性 |
動作壽命 |
額定電壓 |
桿長 |
端子長 |
尺寸 |
|

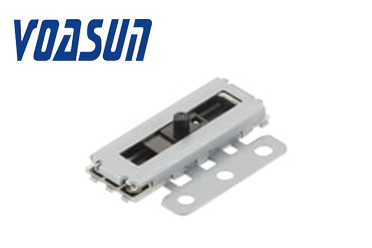

RDC1010A12 |
 |
10mm |
Vertical |
10kΩ |
9.2mm |
±0.5% |
50,000 cycles |
5V DC |
1.3mm |
0.8mm |
6.5×17.3×2.1mm |
|

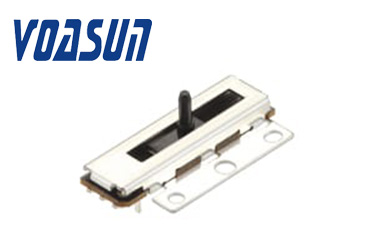

RDC1014A09 |
 |
14mm |
Vertical |
10kΩ |
12mm |
±0.5% |
200,000 cycles |
5V DC |
4.5mm |
2.0mm |
6.9×23.5×2.9mm |
|

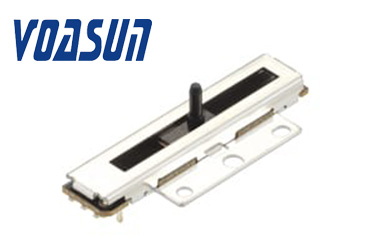

RDC1022A05 |
 |
22mm |
Vertical |
10kΩ |
20mm |
±0.5% |
200,000 cycles |
5V DC |
4.5mm |
2.0mm |
6.9×31.5×2.9mm |
|

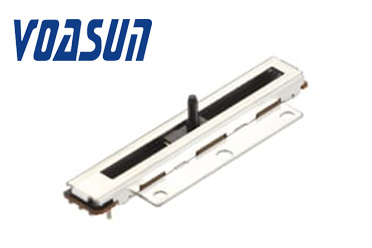

RDC10320RB |
 |
32mm |
Vertical |
10kΩ |
30mm |
±0.5% |
200,000 cycles |
5V DC |
4.5mm |
2.0mm |
6.9×41.5×2.9mm |
|

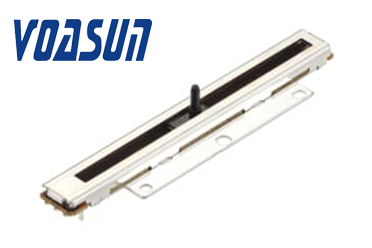

RDC1047A03 |
 |
47mm |
Vertical |
10kΩ |
45mm |
±0.5% |
200,000 cycles |
5V DC |
4.4mm |
2.0mm |
6.9×56.5×3.0mm |
|

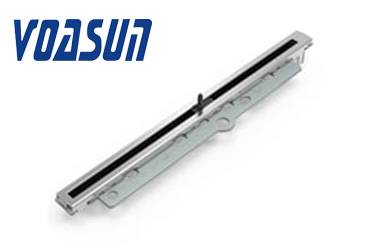

RDC1087A01 |
 |
87mm |
Vertical |
10kΩ |
85mm |
±1% |
100,000 cycles |
5V DC |
4.4mm |
5.1mm |
6.9×96.7×3.45mm |
RDC10系列用途：
Energy / Industrial:機器人 無人機
Game:家庭用便攜設備, VR AR
Healthcare:健康器具, 介護器具, 分析 檢查器具
Home:白色家電, 辦公設備
Automotive:汽車導航儀 汽車音響 HVAC
