產品編號 |
照片 |
操作部方向 |
安裝方法 |
總電阻值 |
電氣有效可變范圍 |
線性保證范圍 |
線性 |
通孔形狀 |
動作壽命 |
額定電壓 |
尺寸 |
|

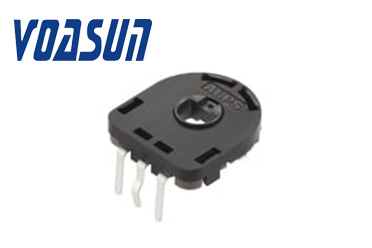

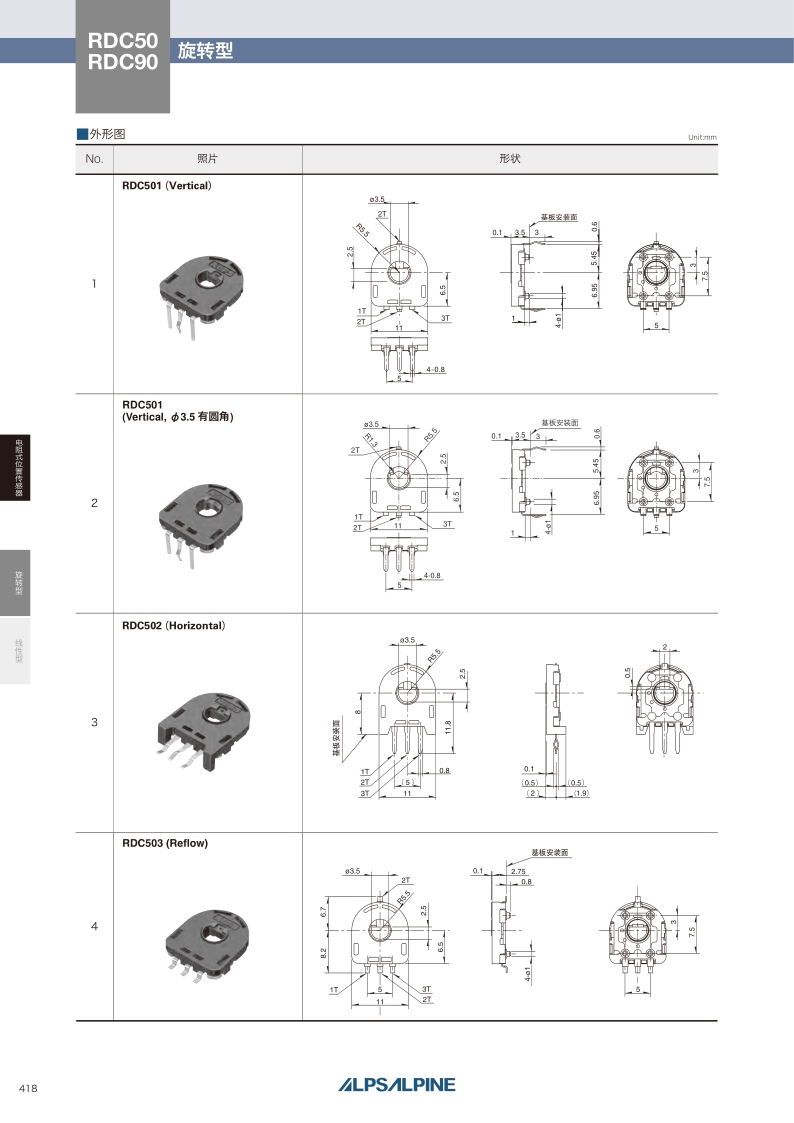

RDC501051A |
 |
Vertical |
Manual, DIP |
10kΩ |
333.3° |
320° |
±2% |
φ3.5 |
1,000,000 cycles |
5V DC |
11.0×12.0×3.5mm |
|

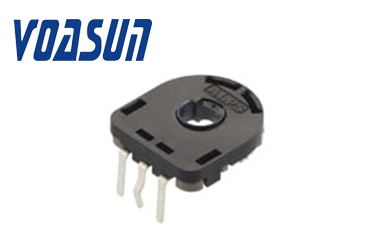

RDC501052A |
 |
Vertical |
Manual, DIP |
10kΩ |
333.3° |
320° |
±2% |
φ3.5 有圓角 |
1,000,000 cycles |
5V DC |
11.0×12.0×3.5mm |
|

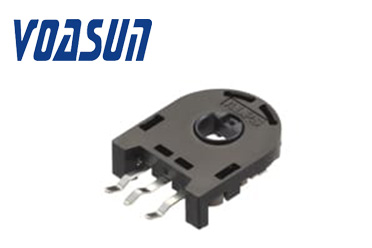

RDC502012A |
 |
Horizontal |
Manual, DIP |
10kΩ |
333.3° |
320° |
±2% |
φ3.5 |
1,000,000 cycles |
5V DC |
11.0×3.9×13.5mm |
|

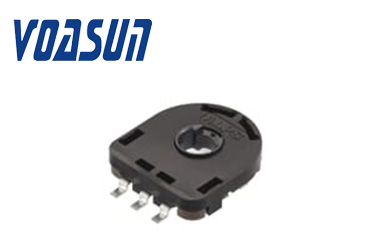

RDC503051A |
 |
Vertical |
Reflow |
10kΩ |
333.3° |
320° |
±2% |
φ3.5 |
1,000,000 cycles |
5V DC |
11.0×12.0×2.75mm |
|
NEW
RDC503061A |
|
Vertical |
Reflow |
4.7kΩ |
150° |
140° |
±2% |
φ3.5 |
1,000,000 cycles |
5V DC |
11.0×12.0×2.75mm |
|

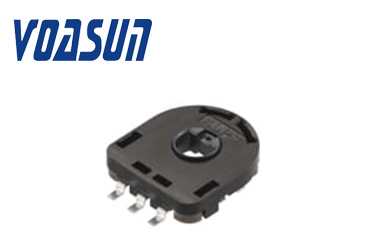

RDC503052A |
 |
Vertical |
Reflow |
10kΩ |
333.3° |
320° |
±2% |
φ3.5 有圓角 |
1,000,000 cycles |
5V DC |
11.0×12.0×2.75mm |
|

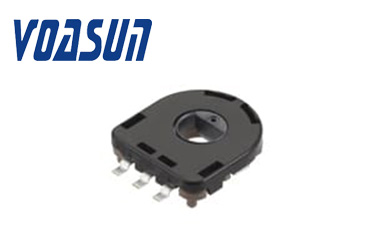

RDC506018A |
 |
Vertical |
Reflow（薄型） |
10kΩ |
333.3° |
320° |
±2% |
φ4 |
1,000,000 cycles |
5V DC |
11.0×12.0×2.2mm |
|
NEW
RDC506A03A |
 |
Vertical |
Reflow（薄型、長壽命、無Case hole） |
10kΩ |
333.3° |
320° |
±2% |
φ4 |
2,000,000 cycles |
5V DC |
11.0×12.0×2.2mm |
RDC50系列用途：
Energy / Industrial:機器人 無人機, 工業設備
Healthcare:健康器具, 介護器具, 分析 檢查器具
Home:白色家電, 辦公設備
Audio / TV:畫面, 音響
Automotive:汽車導航儀 汽車音響 HVAC
